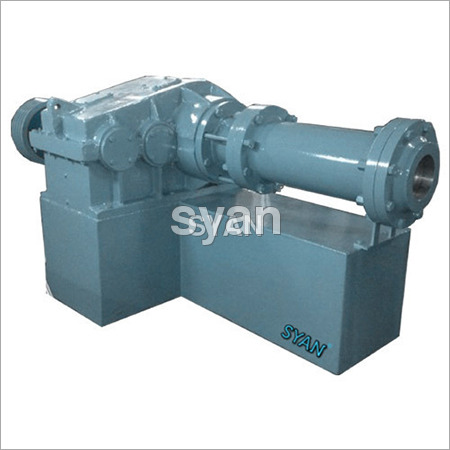

Single Gear Rubber Extruder Machine

Single Gear Rubber Extruder Machine
Single Gear Rubber Extruder Machine
Product Code : SCI - 07
Brand Name : STANDARD CYCLE
Product Description

We have been striving to maintain high quality standards in the market by manufacturing and supplying Single Gear Rubber Extruder Machine. The machine is used for extruding rubber strip, tyre tread winding and wire cable rubber coating purpose. To comply with the set industrial norms, we use optimum grade materials to manufacture this machine. We make this Single Gear Rubber Extruder Machine available for clients in different specifications as per their requirements.

Features:

  • Robust construction

  • Longer service life

  • Vibration free performance

Further Details:

Being a prominent firm in the industry, we are affianced in providing our clients with a distinct assortment of Single Gear Rubber Extruder Machine. Offered machine is equipped with a driven screw for continuous forming of rubber by forcing through a die. The provided machine is meticulously manufactured by our technical experts using optimum components and pioneering techniques. Considering various requirements of our clients, we offer the entire range in various configurations to choose from. This Single Gear Rubber Extruder Machine can be further availed from us at cost-effective prices.

Features:

  • Screw: EN-41. B Nitrated steel scroll having hardness approx. 58-59 RC

  • Liner: 41.B Nitrated steel liner having hardness approx. 58-59 RC

  • Feed Hopper: Specially designed under cut at feeder hopper area to ensure regulated material inflow and constant flow at the die face end. (Feed roller on hot feed extruders offered only on request above 60 mm)

  • Die Head Holder: Removable threaded die head holder with hinged/fixed bolts. Clutch type, hinged type or hydraulic/pneumatically openable die holders are also offered on request as option

  • Stand & Base: Heavy duty steel fabricated monobloc constructed

  • Coupling: Star type heavy duty coupling or directly coupled to the gearbox shaft with heavy duty ‘V’ belt transmission from motor to gearbox. As per standard design or requirement

  • Reduction Gear: SHEL make special hollowed shaft, thrust bearing fitted on the output shaft, profile grounded/soft series gear reducer units as standard or with separate bearing housing with extra heavy duty tapered/thrust roller bearing coupled directly to gearbox output shaft as per customers requirement. Other make gear reduces are also used
