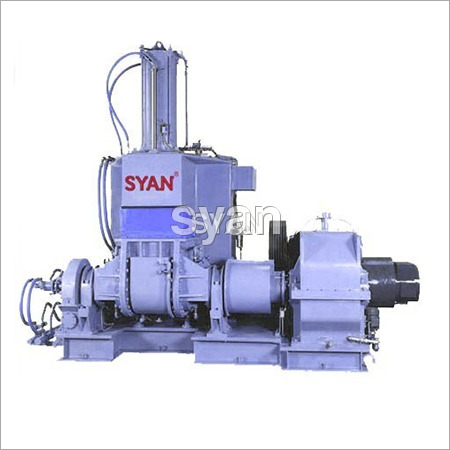

Dispersion Kneader

Dispersion Kneader
Dispersion Kneader
Product Code : SCI - 17
Brand Name : STANDARD CYCLE
Product Description

With an aim to establish ourselves among the leading organizations, we are engaged in manufacturing and supplying an exclusive range of Dispersion Kneader. At our sophisticated production unit, we manufacture this machine using the best quality materials. Ideal for kneading natural rubber, synthetic rubber and PVC, this machine is highly demanded in rubber industry. We make this Dispersion Kneader available for clients in different power ratings as per their requirements.

Features:

  • Vibration and noise free operation

  • Longer service life

  • Easy to operate

Further Details:

We are a renowned organization that is engaged in offering an extensive range of quality assured Dispersion Kneader. This kneader is manufactured at our state-of-the-art production unit by making use of the best quality components and advanced techniques. Highly demanded in rubber and plastic industries, the provided kneader is designed for mixing variety of materials ranging from low viscosity adhesive to high viscosity polymers. Clients can avail this Dispersion Kneader as per their needs at industry leading prices.

Features:

  • Smooth operation

  • Sturdy construction

  • High operational fluency

  • High performance


Brief Construction Details:

  • Mixing Chamber: Single piece Alloy steel chamber duly finished, hard faced, hard chrome platted and jacketed for water cooling or heating

  • Side Board: Single piece Alloy steel side boards. Ensuring side clearance for longer life of rotor edges. Sideboards are duly machined finished, hard chrome platted and jacketed for cooling or heating

  • Pressure LID: Single piece Alloy steel of rigid thickness, duly machined finished hard chrome platted and jacketed for cooling or heating

  • Rotors: Single piece Alloy steel and designed for effective temperature control. Rotor Blades duly hard faced with Stealite welding process to give wear resistance surface and hard chrome platted

  • Titling: Discharge of material by Hydraulic tilting system. This tilting system provides Trouble Free Working of the machine. As there is No Wear & Tear of the gears like in the machines where Worm gear System is used for tilting chamber OR Breakage of the screw and nuts like in the machines where screw and nut system is used for tilting chamber


Available Models: 03 Ltrs. to 250 Ltrs. on regular basis. Higher sizes on demand.

Salient Features:

  • Effective mixing through close loop hydro-electric feed back system

  • Tilting – hydraulic tilting mechanism

  • Main rotor drive – hydraulic by way of high torque low speed hydraulic motor

  • Feeding hopper – hydraulically operated with auto compensated hydraulic system

  • Compact construction – occupying less space. a complete integrated unit

  • Minimum maintenance due to lesser frictional mechanics

  • Minimum operational cost due to single power pack motor

  • No air compressor required


Conventional Dispersion Kneader:

  • Single piece alloy steel casted rigid & robust main mixing chamber, end frame, pressure lid, hardened lips and hardchrome plated for longer working life

  • Alloy steel mixing rotor, hard deposits through special grade material and hardchrome plated. The contour & geometry of rotor edges specially designed and proved for optimum mixing performance, output and results

  • Most effective, positive, self lubricating seals, (dust stop) designed to minimize to oxidization of chemical and dust

  • Lower operational cost with higher productivity and lower energy consumption

  • Specially designed cooling coils and widened jacket for most efficient cooling effect, help to produce thermally

  • Specially designed heavy duty reliable multi-stage helical gearbox unit for lower power consumption

  • Easy to use standard control – easy to use simplified panel controls with all basic functions. Safety interlock to protect operator & equipment. The batch is protected from over or under mixing with exclusive audible alarm

  • Easy cleaning/changing of colors
